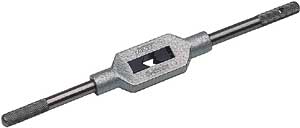

VOLKEL T型棘轮扳手/丝攻扳手Tap Wrenches/Tap Holder with Ratchet
型号 for taps规格 夹持能力 mm 全长mm 重量kg 订货号
VOLKEL1 M3-10 1/8-3/8 2.4-5.5 85 0,165 10001
VOLKEL2 M5-12 7/32-1/2 4.5-8.0 100 0,310 10002
VOLKEL10 M3-10 1/8-3/8 2.4-5.5 250 0,250 10010
VOLKEL20 M5-12 7/32-1/2 4.5-8.0 300 0,440 10020
棘轮扳手生爪 No. 1 / 10 10091
棘轮扳手生爪 No. 2 / 20 10092
VOLKEL一字丝攻扳手Adjustable Tap Wrenches
VOLKEL0 M1-8 1/16-1/4 2.0-5.0 130 0,050 13000
VOLKEL1 M1-10 1/16-3/8 2.0-6.3 176 0,095 13010
VOLKEL1.1/2 M1-12 1/16-1/2 2.1-8.0 176 0,120 13015
VOLKEL2 M4-12 5/32-1/2 3.0-9.0 280 0,285 13020
VOLKEL3 M5-20 7/32-3/4 4.9-12 380 0,660 13030
VOLKEL4 M11-27 7/16-1'' 5.5-16 505 1,500 13040
VOLKEL5 L M13-32 1/2 -1.1/4 7-20 700 1,800 13050
VOLKEL圆牙板扳手Die Stocks
x mm for round dies 全长mm 重量kg Art.-No.
DIN 223 (DIN EN 22568)
16 x 5 M1-2.6 BSW 1/16-3/32 160 0,050 15001
20 x 5 M3-4 BSW 1/8-5/32 200 0,065 15002
20 x 7 M4.5-6 BSW 3/16-1/4 200 0,065 15003
25 x 9 M7-9 BSW 5/16 224 0,105 15004
30 x 11 M10-11 BSW 3/8-7/16 280 0,190 15005
38 x 10 Mf12-15 G 1/4 315 0,340 15006
38 x 14 M12-14 BSW 1/2-9/16 315 0,340 15007
45 x 14 Mf16-20 G 3/8-1/2 450 0,650 15008
45 x 18 M16-20 BSW 5/8-13/16 450 0,650 15009
55 x 16 Mf22-26 G 5/8-3/4 560 0,900 15010
55 x 22 M22-24 BSW 7/8-1'' 560 0,900 15011
65 x 18 Mf27-36 G 7/8-1'' 630 1,400 15012
65 x 25 M27-36 BSW 1.1/8-1.3/8 630 1,400 15013
VOLKEL英制圆牙板扳手Die Stocks
mm inch 全长mm 重量kg Art.-No.
13/16'' 20.6 x 6.35 13/16 x 1/4 200 0,060 15520
1'' 25.4 x 9.5 1'' x 3/8 224 0,100 15525
1.5/16''33.4 x 11.1 1.5/16 x 7/16 270 0,180 15533
1.1/2'' 38.1 x 12.7 1.1/2 x 1/2 315 0,320 15538
2'' 50.8 x 15.9 2'' x 5/8 560 0,900 15550
2.1/4'' 57.1 x 17.5 2.1/4 x 11/16 560 0,900 15557
2.1/2'' 63.5 x 19 2.1/2 x 3/4 630 1,400 15563
3'' 76.2 x 22.2 3'' x 7/8 900 2,200 15576
3.1/2'' 88.9 x 25.4 3.1/2'' x 1'' 900 3,300 15588
4'' 101.6 x 25.4 4'' x 1'' 1000 3,600 15599

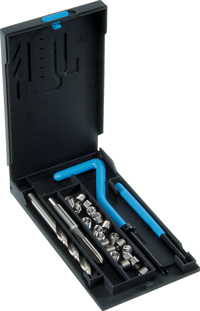

VOLKEL补牙套工具Thread repair kits
规格 钻头 装入工具 折断工具 护套 型号
M 2 x 0.4 2.1 mm No. 2 No. 2 20 v.coil04001
M 2.5 x 0.45 2.6 mm No. 3 No. 3 20 v.coil04003
M 3 x 0.5 3.2 mm No. 4 No. 4 20 v.coil04005
M 3.5 x 0.6 3.7 mm No. 5 No. 5 20 v.coil04006
M 4 x 0.7 4.2 mm No. 6 No. 6 20 v.coil04007
M 5 x 0.8 5.2 mm No. 8 No. 8 20 v.coil04009
M 6 x 1.0 6.3 mm No. 9 No. 9 20 v.coil04010
M 7 x 1.0 7.3 mm No. 10 No. 11 20 v.coil04011
M 8 x 1.25 8.3 mm No. 11 No. 11 20 v.coil04012
M 8 x 1.0 8.3 mm No. 11 No. 11 20 v.coil04013
M 9 x 1.25 9.3 mm No. 12 No. 12 15 v.coil04014
M 10 x 1.5 10.4 mm No. 13 No. 13 15 v.coil04016
M 10 x 1.25 10.3 mm No. 13 No. 13 15 v.coil04017
M 10 x 1.0 10.3 mm No. 13 No. 13 15 v.coil04018
M 11 x 1.5 11.4 mm No. 14 No. 14 10 v.coil04019
M 12 x 1.75 12.4 mm No. 15 No. 15 10 v.coil04021
M 12 x 1.5 12.4 mm No. 15 No. 15 10 v.coil04022
M 12 x 1.25 12.3 mm No. 15 No. 15 10 v.coil04023
M 12 x 1.0 12.3 mm No. 15 No. 15 10 v.coil04024
M 14 x 2.0 No. 16 10 v.coil04028
M 14 x 1.5 No. 16 10 v.coil04029
M 14 x 1.25 No. 17 10 v.coil04030
M 14 x 1.0 No. 17 10 v.coil04031
M 16 x 2.0 No. 18 10 v.coil04032
M 16 x 1.5 No. 18 10 v.coil04033
M 18 x 2.5 No. 20 5 v.coil04034
M 18 x 2.0 No. 20 5 v.coil04035
M 18 x 1.5 No. 20 5 v.coil04036
M 20 x 2.5 No. 21 5 v.coil04037
M 20 x 2.0 No. 21 5 v.coil04038
M 20 x 1.5 No. 21 5 v.coil04039
M 22 x 2.5 No. 22 5 v.coil04040
M 22 x 2.0 No. 22 5 v.coil04041
M 22 x 1.5 No. 22 5 v.coil04042
M 24 x 3.0 No. 23 5 v.coil04043
M 24 x 2.0 No. 23 5 v.coil04044
M 24 x 1.5 No. 23 5 v.coil04045
VOLKEL不锈钢牙套Wire-Thread-Inserts螺纹护套
M3 x 0.5 1,5 D 100 v.coil 07305
M4 x 0.7 1,5 D 100 v.coil 07307
M5 x 0.8 1,5 D 100 v.coil 07308
M6 x 1.0 1,5 D 100 v.coil 07309
M8 x 1.25 1,5 D 100 v.coil 07311
M10 x 1.5 1,5 D 100 v.coil 07315
M10 x 1.25 1,5 D 100 v.coil 07316
M12 x 1.75 1,5 D 100 v.coil 07321
M12 x 1.25 1,5 D 100 v.coil 07323
M16 x 2.0 1,5 D 50 v.coil 07334
M3 x 0.5 2,0 D 100 v.coil 07405
M4 x 0.7 2,0 D 100 v.coil 07407
M5 x 0.8 2,0 D 100 v.coil 07408
M6 x 1.0 2,0 D 100 v.coil 07409
M8 x 1.25 2,0 D 100 v.coil 07411
M10 x 1.5 2,0 D 100 v.coil 07415
M12 x 1.75 2,0 D 100 v.coil 07421
M16 x 2.0 2,0 D 50 v.coil 07434
M20 x 2.5 2,0 D 50 v.coil 07439
M6 x 1.0 2,5 D 100 v.coil 07509
M16 x 2.0 3,0 D 50 v.coil 07634
火花塞用螺纹护套
M14X1.25 8.4mm 12.4mm 16.4mm
VOLKEL牙套嗒/牙套丝锥
直径牙距 B L 1 L 2 D 2
M3x 0.5 3.6 53 13 4 3.15 volkel 03005
M3.5x 0.6 4.3 53 13 4.5 3.55 volkel 03006
M4x 0.7 4.9 58 16 5 4 volkel 03007
M5x 0.8 6 66 19 6.3 5 volkel 03008
M6x 1.0 7.3 72 22 8 6.3 volkel 03009
M7x 1.0 8.3 72 22 9 7.1 volkel 03010
M8x 1.25 9.6 80 24 10 8 volkel 03011
M8x 1.0 9.3 80 24 10 8 volkel 03012
M9x 1.25 10.6 85 25 8 6.3 volkel 03013
M10x 1.5 11.9 89 29 9 7.1 volkel 03015
M10x 1.25 11.6 85 25 8 6.3 volkel 03016
M10x 1.0 11.3 85 25 8 6.3 volkel 03017
M11x 1.5 12.9 89 29 9 7.1 volkel 03018
M12x 1.75 14.3 95 30 11.2 9 volkel 03020
M12x 1.5 14 95 30 11.2 9 volkel 03021
M12x 1.25 13.6 95 30 11.2 9 volkel 03022
M12x 1.0 13.3 95 30 11.2 9 volkel 03023
M14x 2.0 16.6 102 32 12.5 10 volkel 03027
M14x 1.5 16 102 32 12.5 10 volkel 03028
M14x 1.25 15.6 102 32 12.5 10 volkel 03029
M14x 1.0 15.3 102 32 12.5 10 volkel 03030
M16x 2.0 18.6 112 37 14 11.2 volkel 03033
M16x 1.5 18 104 29 14 11.2 volkel 03034
M18x 2.5 21.3 118 38 16 12.5 volkel 03035
M18x 2.0 20.6 104 29 14 11.2 volkel 03036
M18x 1.5 20 104 29 14 11.2 volkel 03037
M20x 2.5 23.3 118 38 16 12.5 volkel 03038
M20x 2.0 22.6 113 33 16 12.5 volkel 03039
M20x 1.5 22 113 33 16 12.5 volkel 03040
M22x 2.5 25.3 130 45 18 14 volkel 03041
M22x 2.0 24.6 120 35 18 14 volkel 03042
M22x 1.5 24 120 35 18 14 volkel 03043
M24x 3.0 27.9 138 48 20 16 volkel ‘03044
|
