SA1 SERIES
Fast Response Thermocouples with Self-Adhesive Backing
|
|
Patented Spool Caddy |
|
|
Self Adhesive Backing for Easy Installation |
|
|
Better Than 0.3 Second Response Time |
|
|
1 m (40") or 2 m (80") Color-Coded PFA Teflon® Insulated Leads |
|
|
Rated to 175°C (350°F) Long Term |
|
|
Available in J, K, T, and E Calibrations |
OMEGA’s self-adhesive thermocouples have now been expanded to include the popular miniature connector with our patented spool caddy. The spool caddy provides a convenient way to store the thermocouple wire that is not needed for the application.
Specifications
Thermocouple Calibrations: J (Iron-Constantan), K (CHROMEGA®-ALOMEGA®), T (Copper Constantan), E (CHROMEGA®-Constantan)
Adhesive: Silicon based cement
Maximum Temperature: 175°C (350°F) continuous
Minimum Temperature: -60°C (-75°F) continuous

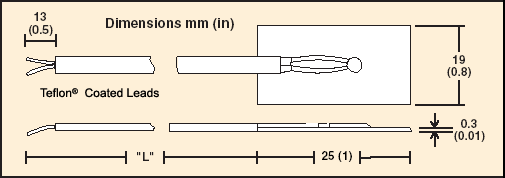

Dimensions: 25 L x 19 W x 0.3 mm (1 x 0.8 x 0.01")
Laminates: High temperature polymer, and fiberglass reinforced polymer layers
Wire: 30 AWG PFA Teflon® coated
|
Model No.-ANSI Color Code |
Wire
Gage |
Length
meter(in) |
Insulation |
|
Thermocouple with Stripped Leads |
Thermocouple with Spool Cap Connector |
Thermocouple with SMP connector and Strain Relief |
|
SA1-J |
SA1-J-SC |
SA1-J-SRTC |
30 |
1 (40) |
Teflon® |
|
SA1-K |
SA1-K-SC |
SA1-K-SRTC |
30 |
1 (40) |
Teflon® |
|
SA1-T |
SA1-T-SC |
SA1-T-SRTC |
30 |
1 (40) |
Teflon® |
|
SA1-E |
SA1-E-SC |
SA1-E-SRTC |
30 |
1 (40) |
Teflon® |
|
SA1-J-72 |
SA1-J-72-SC |
SA1-J-72-SRTC |
30 |
2 (80) |
Teflon® |
|
SA1-K-72 |
SA1-K-72-SC |
SA1-K-72-SRTC |
30 |
2 (80) |
Teflon® |
|
SA1-T-72 |
SA1-T-72-SC |
SA1-T-72-SRTC |
30 |
2 (80) |
Teflon® |
|
SA1-E-72 |
SA1-E-72-SC |
SA1-E-72-SRTC |
30 |
2 (80) |
Teflon® |
Note: 2 m (80") is the longest length available with spool caddy.
|
Part Number |
Description |
|
Thermocouple with Stripped Leads |
|
SA1-J |
J TypeThermocouple, 36" long, stripped ends, 5 pack |
|
SA1-K |
K TypeThermocouple, 36" long, stripped ends, 5 pack |
|
SA1-T |
T TypeThermocouple, 36" long, stripped ends, 5 pack |
|
SA1-E |
E TypeThermocouple, 36" long, stripped ends, 5 pack |
|
SA1-J-72 |
J TypeThermocouple, 72" long, stripped ends, 5 pack |
|
SA1-K-72 |
K TypeThermocouple, 72" long, stripped ends, 5 pack |
|
SA1-T-72 |
T TypeThermocouple, 72" long, stripped ends, 5 pack |
|
SA1-E-72 |
E TypeThermocouple, 72" long, stripped ends, 5 pack |
|
SA1-J-120 |
J TypeThermocouple, 120" long, stripped ends, 5 pack | <, /TR>
|
SA1-K-120 |
K TypeThermocouple, 120" long, stripped ends, 5 pack |
|
SA1-T-120 |
T TypeThermocouple, 120" long, stripped ends, 5 pack |
|
SA1-E-120 |
E TypeThermocouple, 120" long, stripped ends, 5 pack |
|
Thermocouple with SMP connector and Strain Relief |
|
SA1-J-SRTC |
J TypeThermocouple with molded strain relief & SMP male connector |
|
SA1-K-SRTC |
K TypeThermocouple with molded strain relief & SMP male connector |
|
SA1-T-SRTC |
T TypeThermocouple with molded strain relief & SMP male connector |
|
SA1-E-SRTC |
E TypeThermocouple with molded strain relief & SMP male connector |
|
Thermocouple with Spool Cap Connector |
|
SA1-J-SC |
J TypeThermocouple, 36" long, stripped ends with spool cap connector, 5 pack |
|
SA1-K-SC |
K TypeThermocouple, 36" long, stripped ends with spool cap connector, 5 pack |
|
SA1-T-SC |
T TypeThermocouple, 36" long, stripped ends with spool cap connector, 5 pack |
|
SA1-E-SC |
E TypeThermocouple, 36" long, stripped ends with spool cap connector, 5 pack |
|
SA1-J-72-SC |
J TypeThermocouple, 72" long, stripped ends with spool cap connector, 5 pack |
|
SA1-K-72-SC |
K TypeThermocouple, 72" long, stripped ends with spool cap connector, 5 pack |
|
SA1-T-72-SC |
T TypeThermocouple, 72" long, stripped ends with spool cap connector, 5 pack |
|
SA1-E-72-SC |
E TypeThermocouple, 72" long, stripped ends with spool cap connector, 5 pack | |
